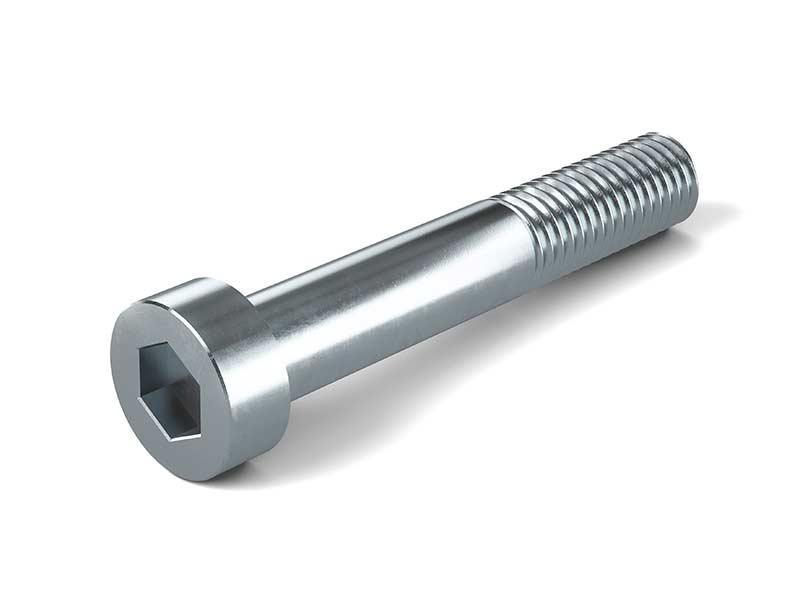

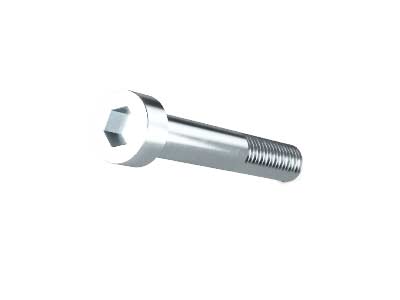

DIN 6912

Cylinder screws

hexagon socket with key guide | low head
Flange/washer: without flange | Thread type: Metric thread | Surface: zinc-plated | Product group: Screws | Installation method: Screw into place with tool | Force application: Hexagon socket with key guide | Head shape: Cylinder head | Material: Steel 08.8
Cylinder screws
Diameter (d)
M4
M5
M6
M8
M10
M12
M14
M16
M20
M24
Length (l)
8
10
12
14
16
18
20
22
25
30
35
40
45
50
55
60
65
70
80
90
100
110
Packaging unit (pcs.)
25
50
100
200
500
Please select a version to see prices and availability.
DIN 6912 | steel | 08.8 | zinc-plated | Cr(VI) - free | metric thread

Note:Due to their head geometry, these screws are limited in their load bearing capacity, see DIN EN ISO 898-1
RoHS conformal:
Installation method:
Screw into place with tool
Material:
Steel
Material:
Steel 08.8
Product type:
Cap screw with internal driving feature
Head shape:
Cylinder head
Product group:
Screws
Risk hydrogen embrittlement:
Force application:
Hexagon socket with key guide
Surface:
zinc-plated
Flange/washer:
without flange
Material version:
08.8
Thread type:
Metric thread
Cr(VI) Note:
Cr(VI)-free

All technical data refer to the measure mm
